← SELECTED PROJECTS
04 / 2026
STANDARDIZATION / DOCUMENTATION
Sofa
Dimension
System
Built with AI-assisted workflows
A standardized sofa dimension template system designed to make measurements clearer, more consistent, and reusable across new sofa models.
01 / PROBLEM
No shared standard meant no reliable reference.
The company did not have a standardized dimension template. Sofa measurements were usually drawn manually, which often resulted in incomplete or inaccurate dimension data, inconsistent drawings, and diagrams that were difficult for non-technical people to understand.
This also affected catalogue preparation. When a new sofa sample was prepared for photography, inaccurate dimensions could lead to incorrect catalogue information, customer confusion, and possible disputes later.
02 / SYSTEM
One reusable structure for every new model.
I developed a reusable sofa dimension template system to standardize how new sofa models are documented.
01 / TOP VIEW
02 / FRONT VIEW
03 / SIDE VIEW
04 / STRUCTURED MEASUREMENTS
05 / REUSABLE LAYOUTS
03 / SYSTEM OVERVIEW
A single reference aligns the required views with the measurement groups used across documentation.
04 / DOCUMENTATION VIEWS
Three consistent viewpoints separate width, profile, and construction information for easier reading.
01

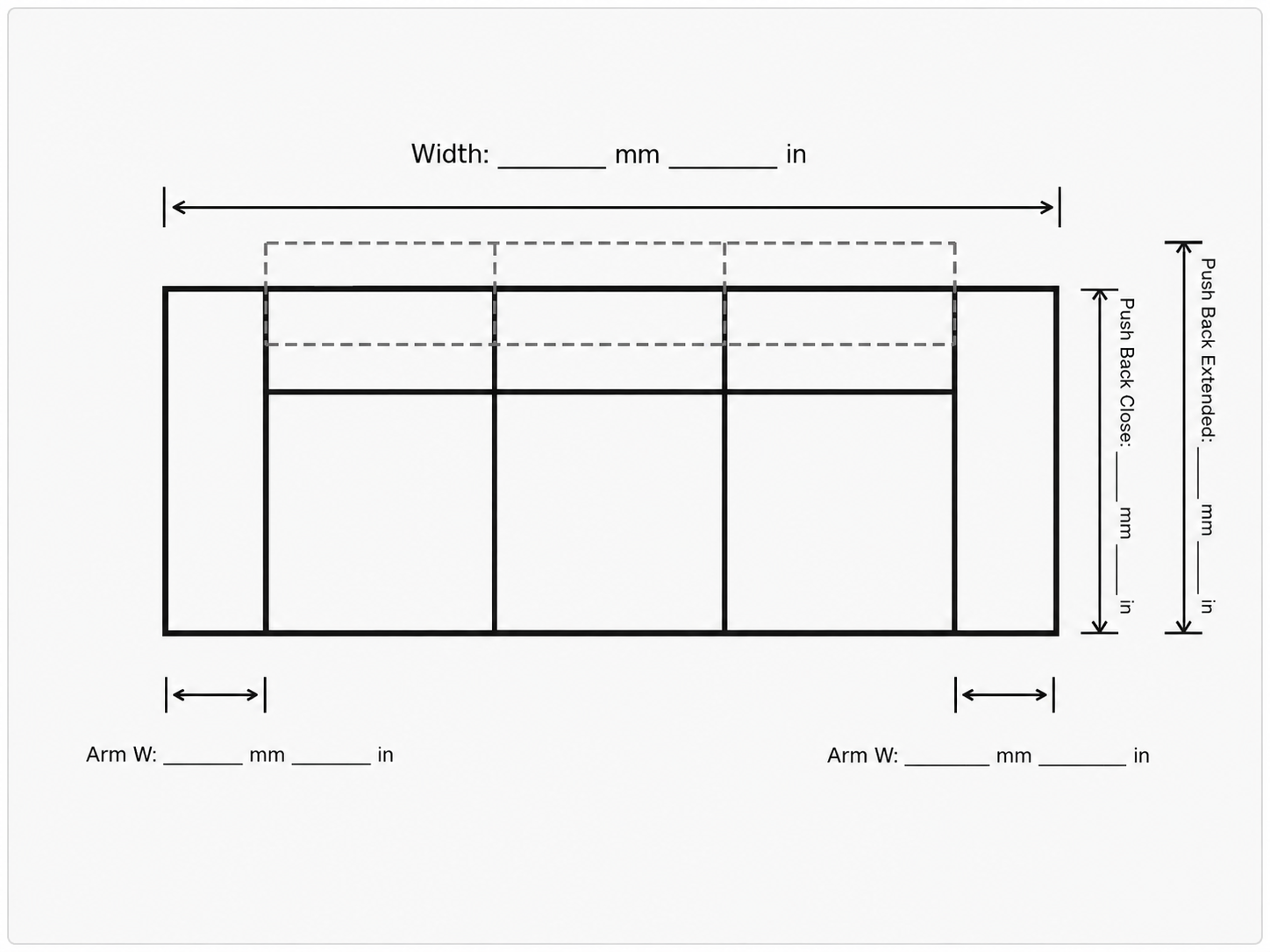

Top View
02

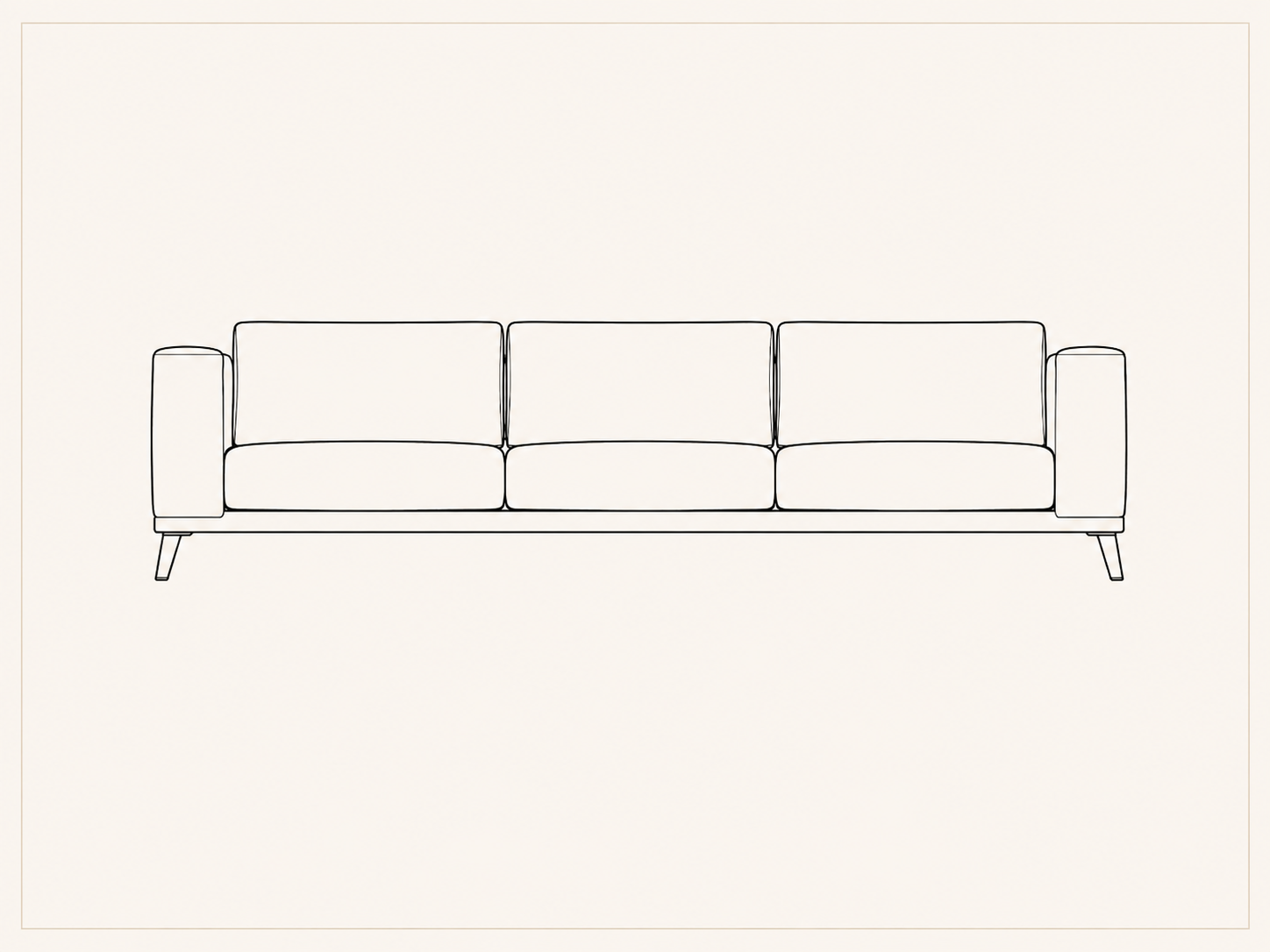

Front View
03

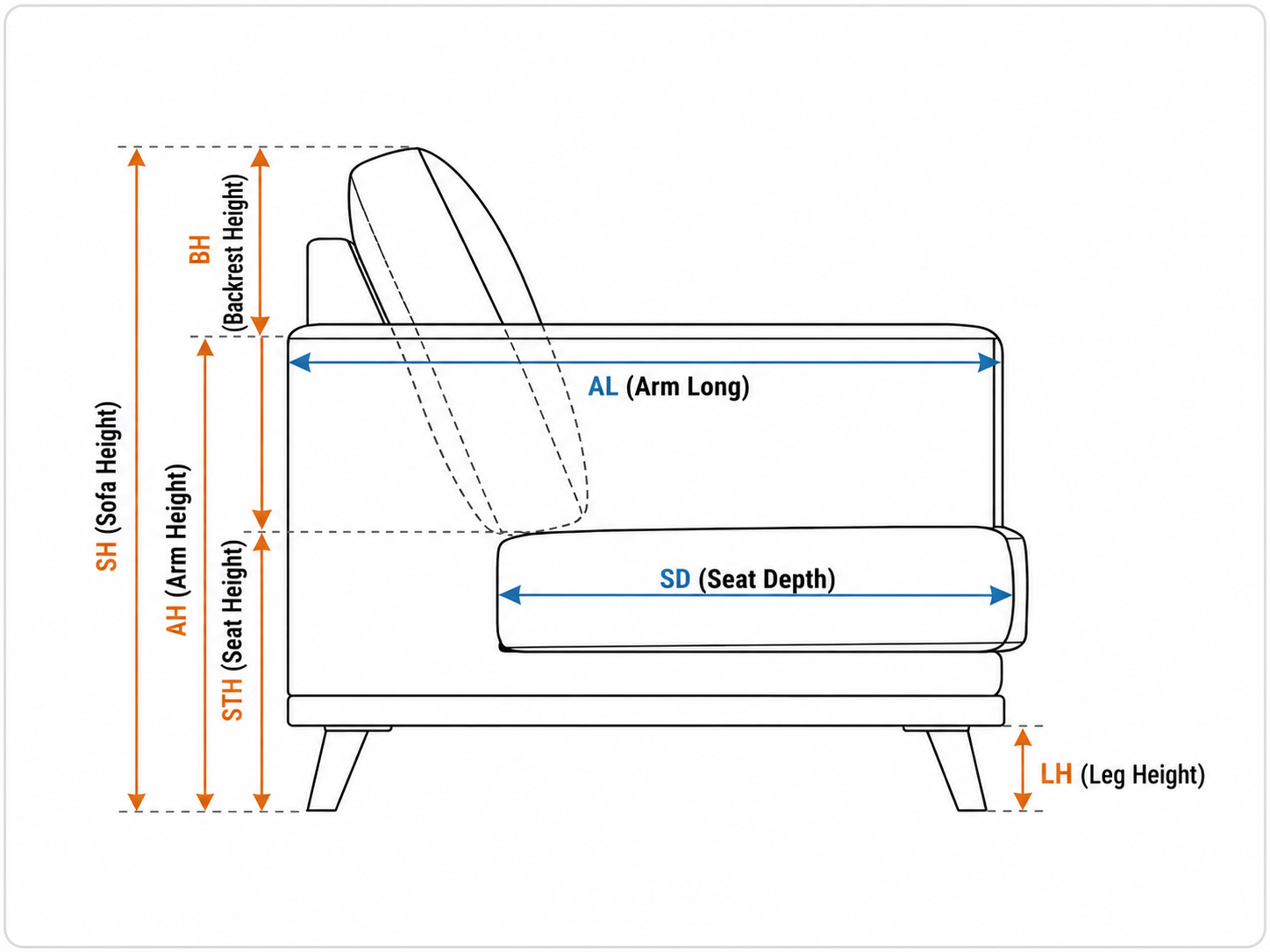

Side View

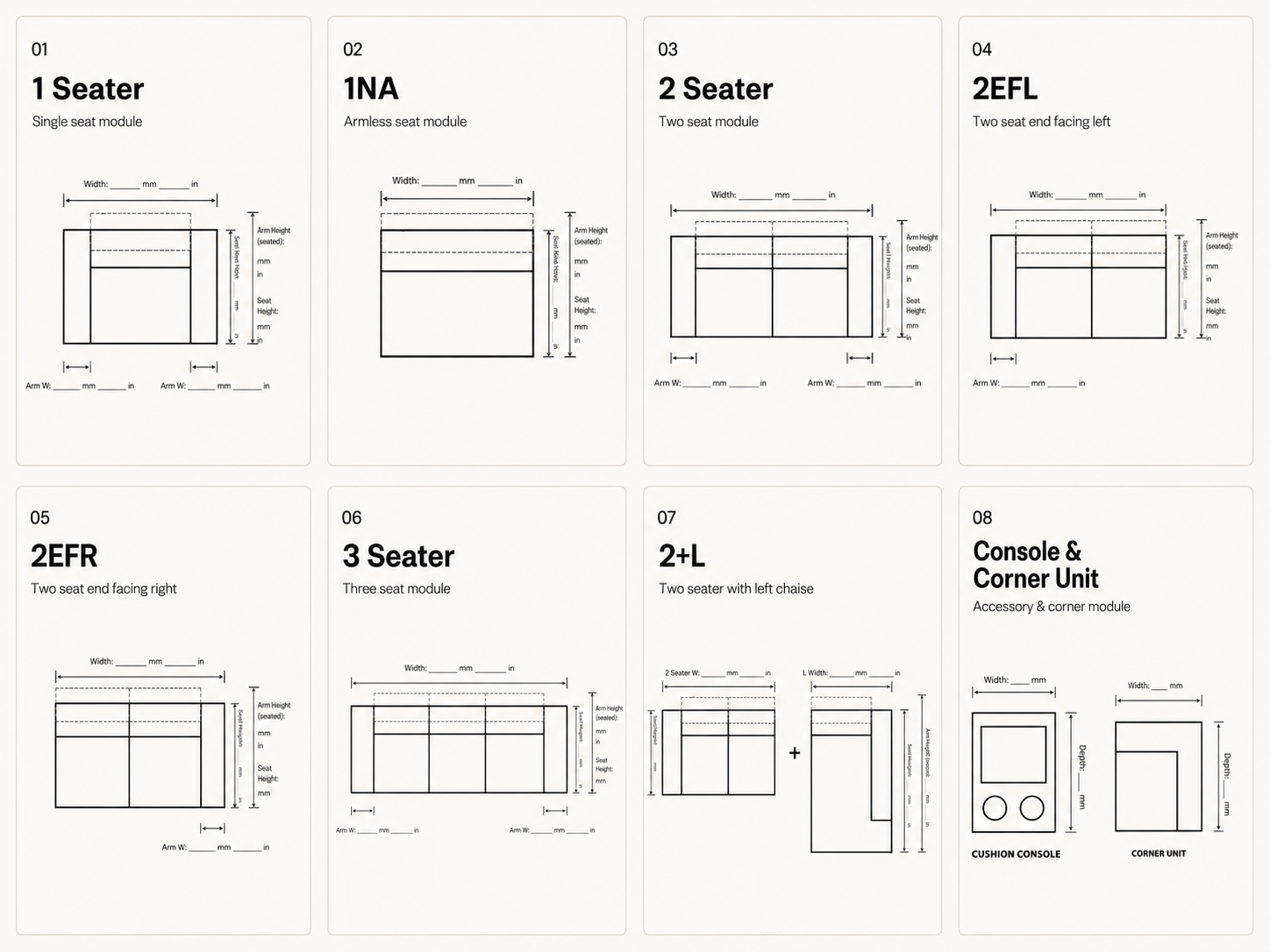

05 / SUPPORTED CONFIGURATIONS
The same documentation logic scales from an armchair to modular combinations and corner units.
011 Seater / Armchair
021NA
032 Seater
042EFL
052EFR
063 Seater
072+L
08Console & Corner Unit
06 / MEASUREMENT FRAMEWORK
Measurements are grouped by physical component so required information can be checked systematically.
Seat
Seat depth
Seat height
Push Back
Closed depth
Extended depth
Backrest
Backrest height
Arm
Arm width
Arm height
Leg
Leg height

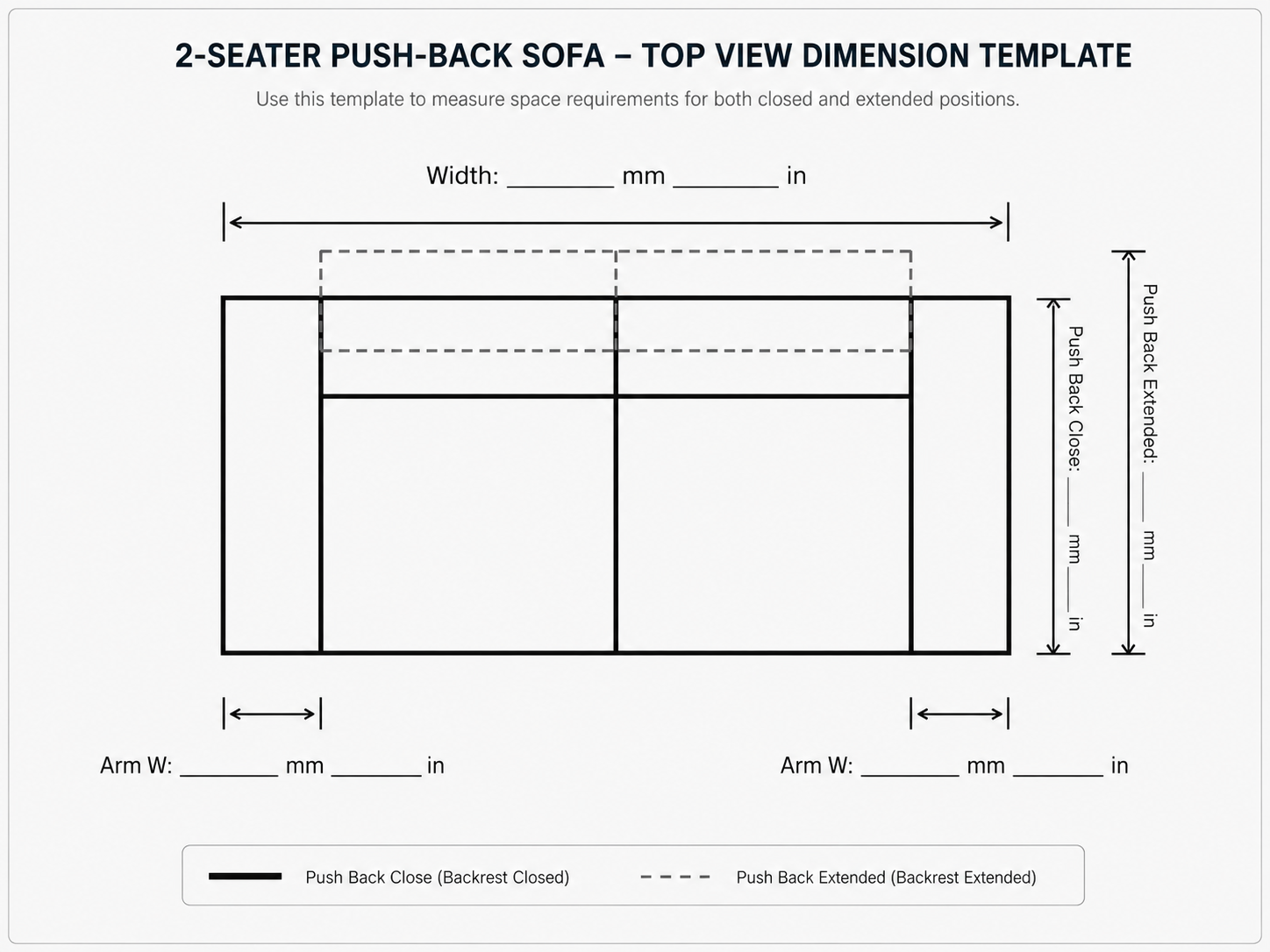

VARIABLE STATE / PUSH BACK
Closed and extended positions,
Closed and extended positions,
recorded in one view.
The template documents space requirements for both states without creating a separate drawing or losing the relationship between them.
07 / PROCESS
From individually drawn information to a repeatable documentation workflow.
- 01
Audit the gaps
Identify where manual drawings produced incomplete, inconsistent, or hard-to-read information.
- 02
Define the views
Establish top, front, and side views as the shared visual basis for every model.
- 03
Group the measurements
Organize key dimensions around sofa, seat, push back, backrest, arm, and leg components.
- 04
Build for reuse
Create a structure that adapts to future sofa configurations instead of redrawing each model from scratch.
08 / OUTCOME
One template.
Less repeated work.
Clearer decisions.
New sofa designs can now use the same template, saving time, reducing repeated work, and producing more complete and consistent dimension documentation for costing, catalogue preparation, and internal reference.
